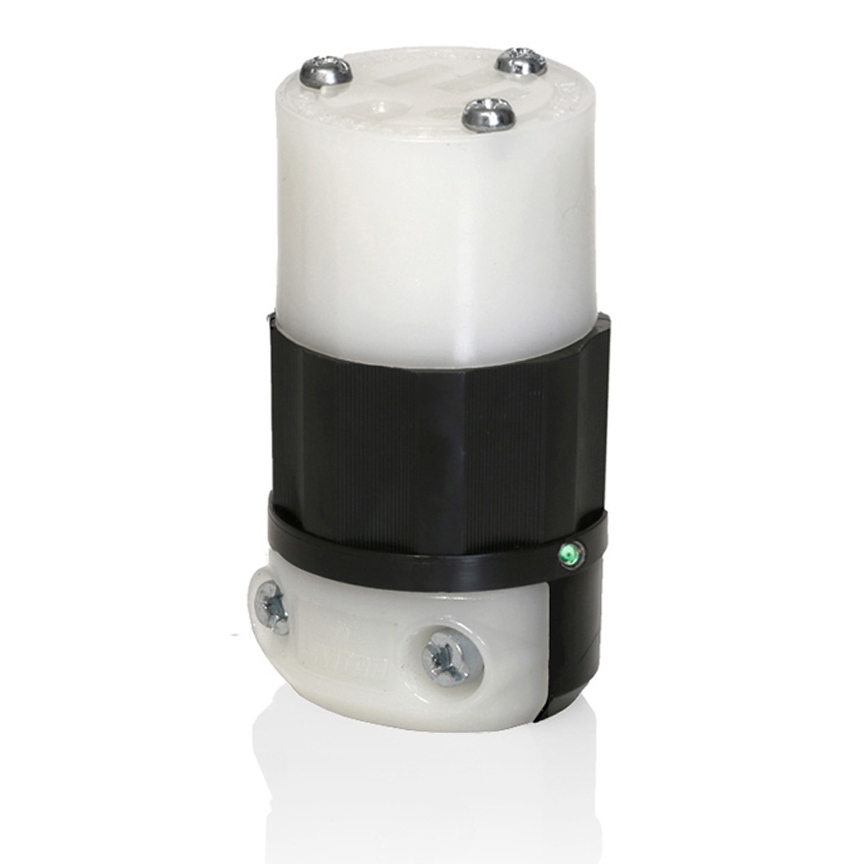

LEV 5369-PLC
MFG #5369-PLC
UPC #07847707716
SKU #3943850
Product description
LEV 5369-PLC 20AMP 125VAC NEMA5-20R 2POLE 3WIRE CONNECTOR BODY .245"-.700" CORD DIAMETER INDUSTRIAL GRADE BLACK/ WHTIE NYLON W/POWER INDICATION
Leviton®, 5369-PLC, Straight Blade Connector, Cable Mount Grounding, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Grade, 0.25 to 0.685 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 1.49 in Dia x 2.76 in H Dimensions
Leviton®, 5369-PLC, Straight Blade Connector, Cable Mount Grounding, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Grade, 0.25 to 0.685 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 1.49 in Dia x 2.76 in H Dimensions
- CONNECTOR BL STR 125VAC 20A 2 3 BK/WHT
- Leviton® Black & White® Straight Blade Connector, Cable Mount Grounding, 125 VAC, 20 A, 2 Poles, 3 Wires, NEMA 5-20R, Industrial Grade, 0.25 to 0.685 in Cord Dia, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 1.49 in Dia x 2.76 in H
- ANSI C-73|NOM 057|NEMA WD-1/WD-6|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13399|Federal Specification WC596|UL94 V-2 Flammability Rating
- Product Catalog Page(s)
MSDS
Specification Sheet
- Brand: LevitonAmperage Rating: 20 AMPApplication: IndustrialColor: Black/WhiteCountry of Origin: MXEnvironmental Conditions: Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C)Material: Super Tough Nylon (Body)Mounting: CableNEMA Rating: 5-20RNumber of Poles: 2Number Of Wires: 3Phase: 1 PHSize: 1.49 Dia x 2.76 H INStandard: NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13399);UL Fed Spec WC-596 (File E13393)Sub Brand: Black & WhiteType: PlugVoltage Rating: 125Wire Size: 18-10 AWG (Terminal Accommodation);.250-.685 IN (Cord Grip Range)
