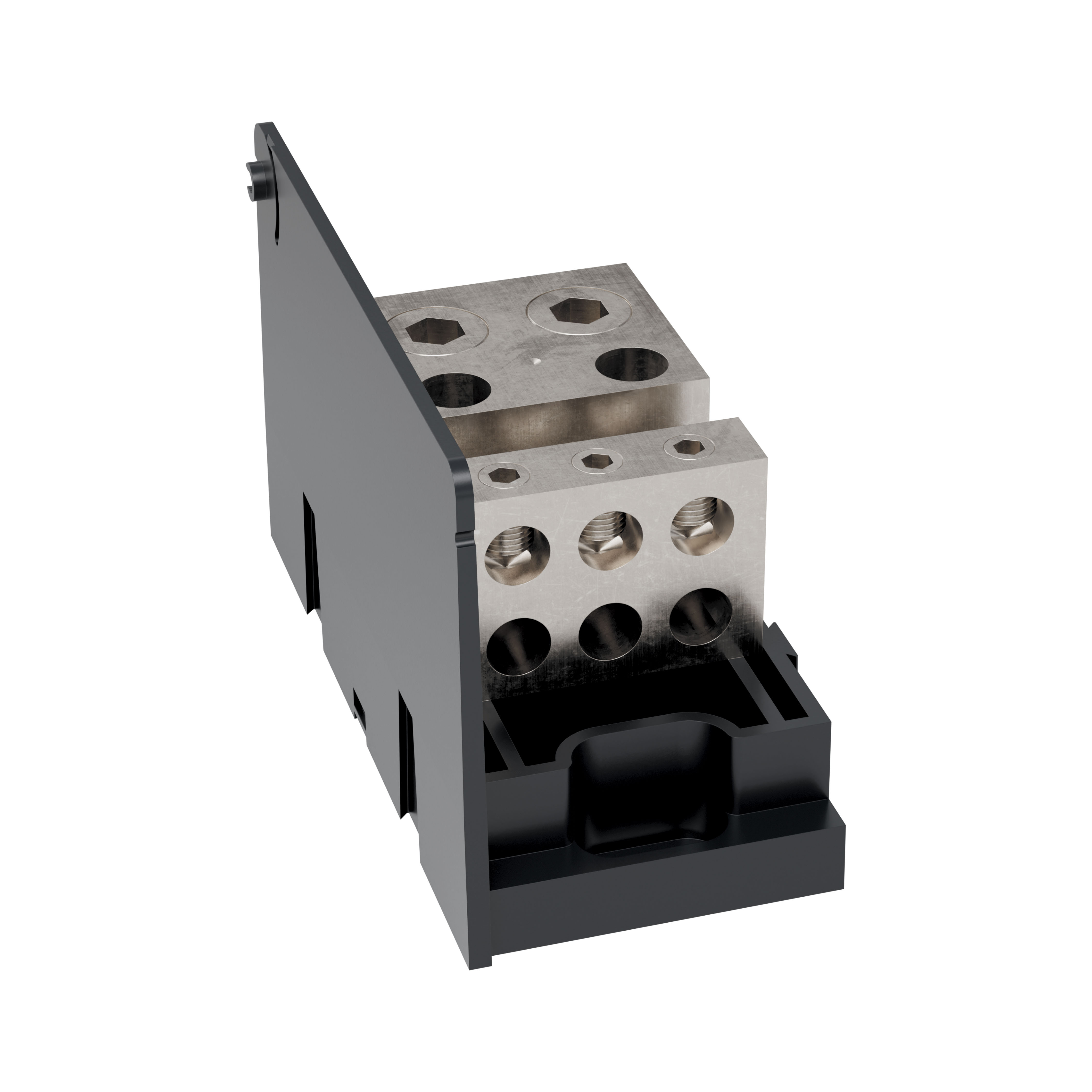

MERSEN MPDB68100
MFG #MPDB68100
UPC #78200145315
SKU #4178593
Product description
MERSEN MPDB68100 PWR DIS BLK CU LG 760A AD 6 1 POLE 2) 500-4 LINE, 6) 2/0-14 LOAD NC/NR
Mersen Power Distribution Block, Adder Large Open Style, Series: MPDB, 600 VAC, 760 A, 2 Primary Connections/Pole, 6 Secondary Connection/Pole, 4 AWG to 500 kcmil Wire, 100 kA Short Circuit, Polycarbonate, Black, 2.58 in W x 5.7 in D x 3.55 in H Dimensions
Mersen Power Distribution Block, Adder Large Open Style, Series: MPDB, 600 VAC, 760 A, 2 Primary Connections/Pole, 6 Secondary Connection/Pole, 4 AWG to 500 kcmil Wire, 100 kA Short Circuit, Polycarbonate, Black, 2.58 in W x 5.7 in D x 3.55 in H Dimensions
- BLOCK DISTRIBUTION PWR 600VAC 760A 2 6
- Mersen Power Distribution Block, Adder Large Open Style, Series: MPDB, 600 VAC, 760 A, 2 Primary Connections/Pole, 6 Secondary Connection/Pole, 4 AWG to 500 kcmil Wire, 100 kA Short Circuit, Polycarbonate, Black, 2.58 in W x 5.7 in D x 3.55 in H Dimensions
- RoHS Compliant|UL File No. E352417|CSA Class 6228-01, File No. 069363_0_000|CE Marked|UL94-V0 Flammability
- Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point Applications
- Specification Sheet
- Brand: Mersen Ferraz Shawmut Chase FusesAmperage Rating: 760 AApplication: Splicing cables Splitting primary power into secondary circuits Fixed junction tap-off points.Conductor Range: 500-#4 , 2/0-#14Connection: Box To BoxCountry of Origin: MXMaterial: Tin-Plated CopperMounting: Direct Screw MountNumber Of Conductors: 2 , 6Number of Poles: ANumber Of Terminals: 1Size: 5.7 x 2.58 x 3.55 inStandard: UL Listed to subject 1953, File E352417 unless noted otherwise CSA Certified Class 6228 01Type: Open-Style Power Distribution BlocksVoltage Rating: 1000
