SIEMCTL 3LD2103-1TP51
MFG #3LD2103-1TP51
UPC #75455473272
SKU #3881925
Product description

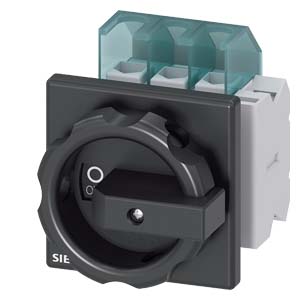

SIEM 3LD2103-1TP51 DISC SWITCH 3P BLK ROTARY 25A 4HOLE DOOR
Sentronâ„¢ Disconnect Switch, Series: 3LD, 690 VAC, 25 A, 50/60 Hz Frequency, 3 Pole, 50 kA Short Circuit, 1NC-1NO Contact Form, Rotary Actuator, IP65 Enclosure, 4-Hole/Front Mounting, Box Terminal, -20 to 120 deg F, 84 mm H x 67 mm W x 92.5 mm D Dimensions, Black Handle
Sentronâ„¢ Disconnect Switch, Series: 3LD, 690 VAC, 25 A, 50/60 Hz Frequency, 3 Pole, 50 kA Short Circuit, 1NC-1NO Contact Form, Rotary Actuator, IP65 Enclosure, 4-Hole/Front Mounting, Box Terminal, -20 to 120 deg F, 84 mm H x 67 mm W x 92.5 mm D Dimensions, Black Handle
- SWITCH DISC 690VAC 25A 1NC-1NO 3 50/60HZ
- Sentron Disconnect Switch, Series: 3LD, 690 VAC, 25 A, 50/60 Hz Frequency, 3 Pole, 50 kA Short Circuit, 1NC-1NO Contact Form, Rotary Actuator, IP65 Enclosure, 4-Hole/Front Mounting, Box Terminal, -20 to 120 deg F, 3.3 x 3.4 x 3.7 in Dimensions, Black Handle
- CCC Certified|CE Certified|CSA Certified|UL Listed
- For switching main and auxiliary circuits, also for switching induction motors and other loads during maintenance and repair work
- Product Catalog Page(s)
Specification Sheet
- Brand: Siemens Energy -ControlActuator: RotaryAmperage Rating: 25 AApplication: OEM DisconnectConduit Connection: N/AConnection: N/AContact Configuration: N/AContact Rating: N/ACountry of Origin: DEEnclosure: N/AEnvironmental Conditions: IndoorIndicator: N/AInterrupt Rating: 9.5kWMounting: 4 Hole MountedNumber of Poles: 3Operating Cycles: N/AOperating Temperature: -20F to 120F Ambient TempSize: 3.300x3.400x3.700Special Features: Black HandleStandard: ARRA Compliant|Buy American Act and RoHS Compliant|CCC, CE|CSA Certified|UL ListedSub Brand: SENTRONTrip Type: N/AType: 3LDVoltage Rating: 690 VWattage: N/A
