MERSEN A70P350-4
MFG #A70P350-4
UPC #78200194733
SKU #1581750
Product description

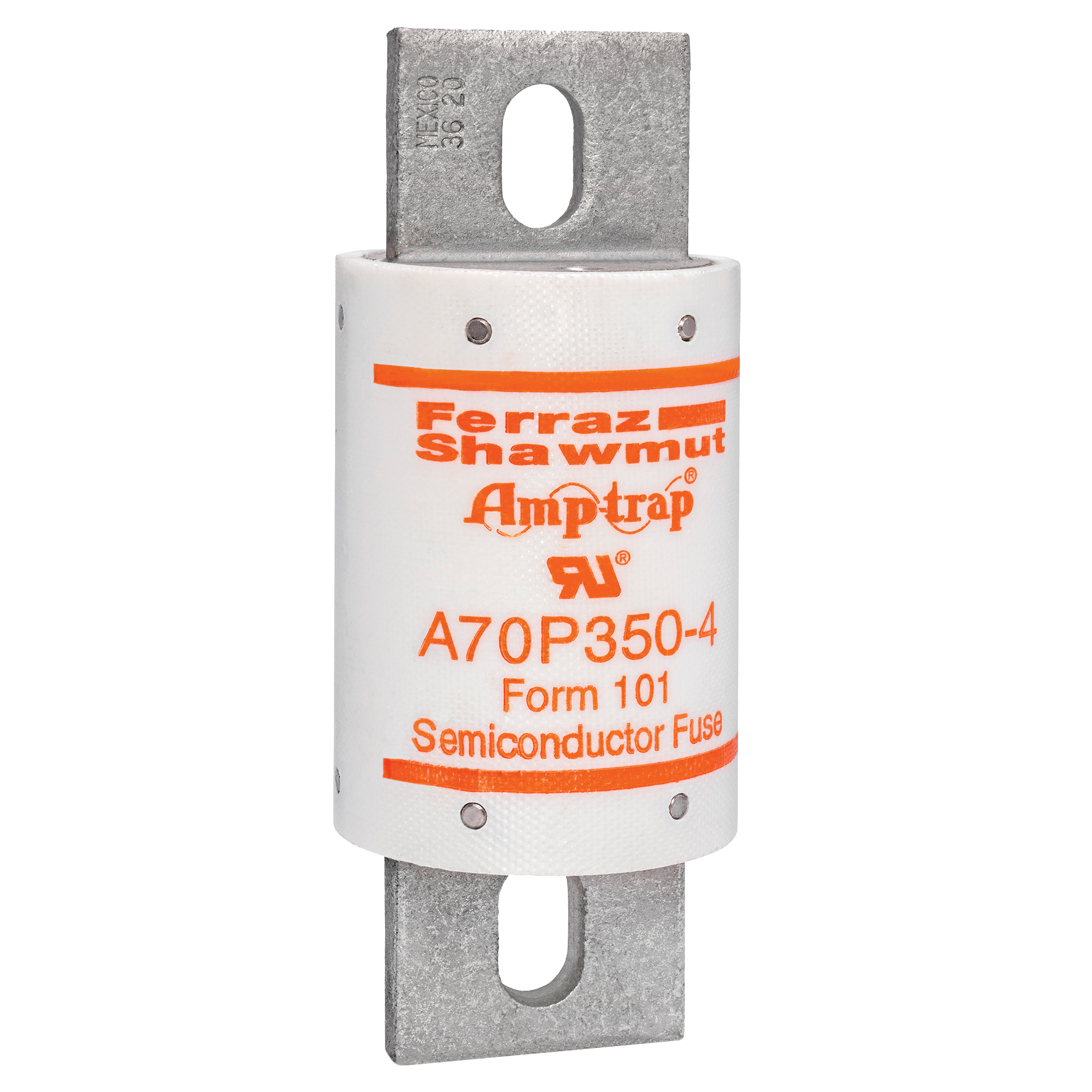

MERSEN A70P350-4 700V 350A SEMICOND FUSE
Mersen AMP-TRAP® Semiconductor Fuse, Current Limiting High Speed, Series: A70P, Non-Indicating, Non-Rejection, 350 A, 700 VAC, 650 VDC, 100 kA Interrupt, 10 ms Response, Bolted Terminal, Bolt Mounting, Cylindrical Body, Fiber, 2 in Dia x 5.09 in L Body
Mersen AMP-TRAP® Semiconductor Fuse, Current Limiting High Speed, Series: A70P, Non-Indicating, Non-Rejection, 350 A, 700 VAC, 650 VDC, 100 kA Interrupt, 10 ms Response, Bolted Terminal, Bolt Mounting, Cylindrical Body, Fiber, 2 in Dia x 5.09 in L Body
- Controlled arc voltage reduces stress to circuit components during fuse clearing
Choice of mounting types helps in equipment design
Very fast acting
North American round style
Tin-plated copper, tin-plated brass and silver-plated copper contact
- Product Catalog Page(s)
Specification Sheet
- FUSE SEMICOND 350A 700 VAC, 650 VDC CYL
- Mersen AMP-TRAP Semiconductor Fuse, Current Limiting High Speed, Series: A70P, Non-Indicating, Non-Rejection, 350 A, 700 VAC, 650 VDC, 100 kA Interrupt, 10 ms Response, Bolted Terminal, Bolt Mounting, Cylindrical Body, Fiber, 2 in Dia x 5.09 in L Body
- For protection of 700 V or less DC drives, UPS, inverters and reduced voltage starters
- RoHS Compliant|UL File No. E60314|UL Guide No.JFHR2|UL 198L Parameters (10-800A)
- Brand: Mersen Ferraz Shawmut Chase FusesAmperage Rating: 350 AApplication: Protection of 700V or less DC drives, UPS, inverters, reduced voltage starters, etc.Case: GMGConnection: BladeCountry of Origin: MXMounting: BoltedResponse Time: High-SpeedSize: 5.09 x 2 inSpecial Features: Low I2t minimizes damage to protected components on short circuit Controlled arc voltage reduces stress to circuit components during fuse clearing Choice of mounting types helps in equipment designStandard: RoHS Compliant|UL File No. E60314|UL Guide No.JFHR2|UL 198L Parameters (10-800A)Sub Brand: Amp-Trap®Type: Round Body High-Speed Fuse-Links AC ProtectionVoltage Rating: 700 V
