SIEM FXD63B225
MFG #FXD63B225
UPC #78364321128
SKU #49498
1 in Stock
Stock Item
More available 01/08/2026
$330290.64/BX
Product description

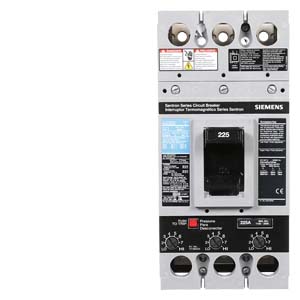

SIEM FXD63B225 225A 3P 600V BOLT ON BRKR
Siemens Sentronâ„¢ Molded Case Circuit Breaker, Type FXD6 Low Voltage, 600 VAC, 225 A, 50/60 Hz Frequency, 22 kA Interrupt, FD Frame, Thermal/Magnetic Trip, 1100 to 2500 A Trip, 3 Pole, 3 ph, Line/Load Connection, 40 deg C, 7 in L x 5.5 in W x 11.1 in H Dimensions
Siemens Sentronâ„¢ Molded Case Circuit Breaker, Type FXD6 Low Voltage, 600 VAC, 225 A, 50/60 Hz Frequency, 22 kA Interrupt, FD Frame, Thermal/Magnetic Trip, 1100 to 2500 A Trip, 3 Pole, 3 ph, Line/Load Connection, 40 deg C, 7 in L x 5.5 in W x 11.1 in H Dimensions
- BREAKER CKT CASE MLD 600VAC 225A 22KA
- Siemens Sentron Molded Case Circuit Breaker, Type FXD6 Low Voltage, 600 VAC, 225 A, 50/60 Hz Frequency, 22 kA Interrupt, FD Frame, Thermal/Magnetic Trip, 1100 to 2500 A Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 40 deg C, 7 in L x 5.5 in W x 11.1 in H Dimensions
- HACR Rated|UL 489
- For standard 40 deg C breaker
- Product Catalog Page(s)
Specification Sheet
- Brand: Siemens Energy (ITE)Actuator: VaryingAmperage Rating: 225 AApplication: Standard 40C BreakerAuxiliary Contacts: N/AConnection: N/ACountry of Origin: MXEnclosure: VaryingEnvironmental Conditions: N/AFrame: FDFrequency Rating: 50/60 HzHeight: 11.1 inInterrupt Rating: 22KAICLength: 7.000Load Rating: N/AMaterial: N/ANumber of Poles: 3Operating Temperature: 40CSpecial Features: N/AStandard: HACR Rated|UL 489Sub Brand: SENTRONTrip Range: 1100-2500Trip Type: Thermal-MagneticType: FXD6Voltage Rating: 600 VWidth: 5.500
