TB 02500240
MFG #02500240
UPC #78378666600
SKU #3966969
Product description

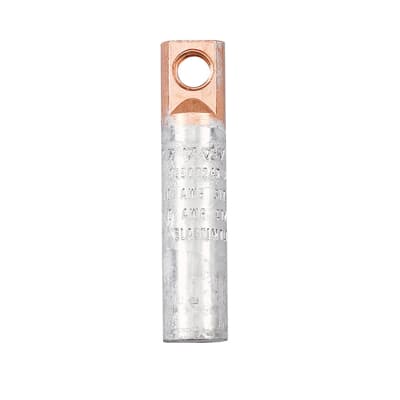

ELAST 02500240 #1/0AWG AL/CU LONG BI-METAL CONTACT 15KV 200AMP LOADBREAK FOR USE W/ 165/166LR -275/276LR -375/376LR -156LR ELASTIMOLD ELBOWS Factory Non-Stock, non-returnable
Elastimold® Loadbreak Compression Lug, Long, 15/35 kV, 200 A, 1/0 AWG, 2/0 AWG Conductor, Crimped, -40 to 65 deg C Temperature, Aluminum/Copper, Bare, Bare, 0.63 in Dia x 2.88 in H
Elastimold® Loadbreak Compression Lug, Long, 15/35 kV, 200 A, 1/0 AWG, 2/0 AWG Conductor, Crimped, -40 to 65 deg C Temperature, Aluminum/Copper, Bare, Bare, 0.63 in Dia x 2.88 in H
- LUG COMPRESSION LOADBREAK 15/35KV 200A
- Elastimold Loadbreak Lug, Contact Long, 15/35 kV, 200 A, 1/0 AWG Stranded, 2/0 AWG Solid Conductor, Compression, Aluminum/Copper, Bare, 0.63 in Dia x 2.88 in H
- IEEE 386
- For providing convenient method to connect/disconnect cable and equipment on power distribution systems
- Product Catalog Page(s)
Specification Sheet
- Brand: Thomas & BettsAmperage Rating: 200 AApplication: 200-Amp Loadbreak Connectors and Accessories provide a convenient method to connect/disconnect cable and equipment on power distribution systems.Conductor Range: 1/0 STR/COMPR AWG ; 2/0 SOL/COMPT AWGConnection: CompressionCountry of Origin: USMaterial: Bi-MetalStandard: IEEE 386Type: Contact LongVoltage Rating: 15 to 35 kVWire Size: 1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG
